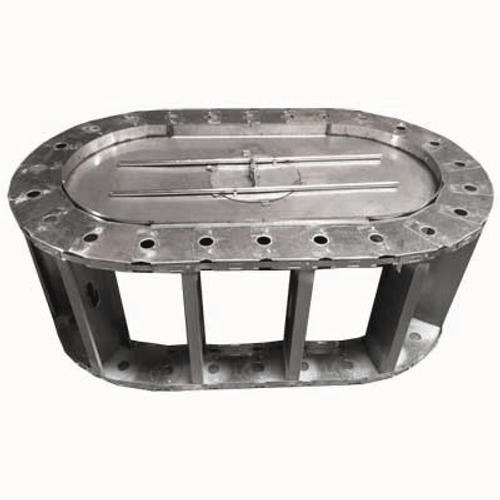

54" Oval Fire Pit Frame (Electronic Ignition Burner)
Prefabricated gas fire pit featuring a 24" x 6" electronic ignition gas burner
Choice of commercial or residential gas burner. Available for natural or propane gas applications.
Gas fire pit frame kit includes:
- Heavy duty frame construction
- Stainless steel pan
- Fully assembled electronic ignition gas burner insert
- Stainless steel flexible gas line for convenient gas connection
- Available in natural or propane gas
Electronic Ignition Burner System:
- CSA certified U.S and Canada
- 24" x 6" H-style stainless steel burner (90,000 BTU)
Fire Glass Information:
- 80 lbs of fire glass is recommended for natural gas applications
- 60 lbs of fire glass is recommended for propane gas applications
- Propane applications: Apply up to 1/4" of fire glass over burner. Do not block burner holes with media
- Burner pilot area and pilot hood must be clear of any media or debris to operate
Buyers Guide:
- Timer and emergency stop switch sold separately- see our installation supplies
- Burner must be covered when not in use. Custom metal and fabric cover available
- Prefabricated fire pit allows you to be creative finishing the exterior of frame
- Continue shopping for installation supplies and fire pit accessories to enhance the flame.
- Flame Creation products include: fire glass, lava rock, river stones, covers, timers, safety shut off switches, vents
- Electronic burners require outdoor approved wire with conduit from source (breaker and switch) to fire pit location
- GFCI protected circuit must be utilized
- Ventilation required
Options:
- Electronic Ignition Control Type:
- On/Off Operation: Burner system turns on/off with wall switch, remote, timer or home automation (purchased separately)
- On/Off Operation with Remote: Includes remote and receiver which can be plugged into an approved outlet
- High/Low Operation with Remote: Includes a smart remote control with Bluetooth technology which adjust flame from high to 45% turndown
- Gas Key Valve Kit allows for manual flame height adjustment
- Valve kit includes: brass valve, decorative valve cover, flexible gas line and choice of 3", 8", 12", 18" key.
Frame Dimension: 54" Length x 36" Width. Fire pit pan: 42" L x 24" W
*Actual finish size will be determined by material used to complete outside of fire pit frame
